LW24-40.5 outdoor H.V.A.C dead tank SF6 circuit br
Time：2019-09-13
Source：
Browse：次
 Product Introduction |
 |
technical parameters
sequence Terms LW24-40.5
number
1 Rated voltage kV 40.5
2 Rated current A 3150
3 Rated short-circuit breaking current kA 40
4 Rated short-time withstand current kA 40
5 Rated peak withstand current kA 100
6 Rated lightning impulse withstand voltage kV Across open breaks 185+33
To earth 185
7 Rated 1min power frequency withstand voltage kV
Across open breaks 95+23.4
To earth 95
8 mechanism spring
|
| |
Application |

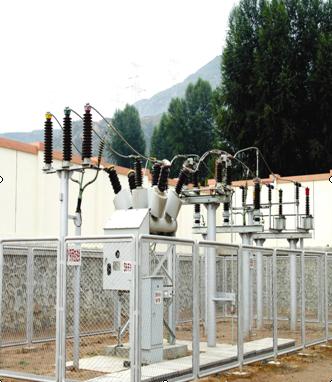

| LW24-40.5 outdoor H.V.A.C dead tank SF6 circuit breaker with spring operating mechanism and CT winding，is a new kind of circuit breaker with self-blast interrupter。This product has reliable performance and stable operation, is both single-pole operating and there-pole operating.It can adapt our requirements of various environmental conditions. |
