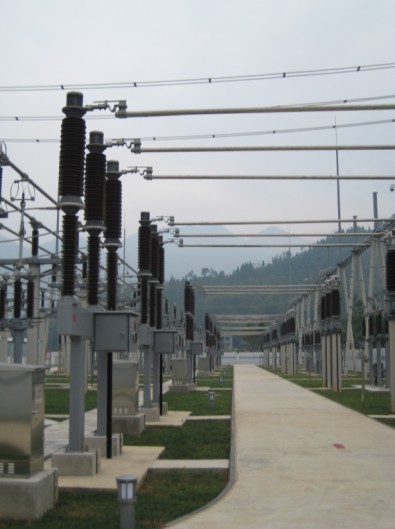

LW25-170III outdoor H.V.A.C porcelain SF6 circuit
Time：2019-09-13
Source：
Browse：次
 Product Introduction |
 |
LW25-170III outdoor H.V.A.C porcelain SF6 circuit breaker with spring operating mechanism，is a new kind of circuit breaker with self-blast interrupter。This product has reliable performance and stable operation, is both single-pole operating and there-pole operating.It can adapt our requirements of various environmental conditions.
technical parameters
sequence number Terms LW25-170III
1 Rated voltage kV 170
2 Rated current A 3150
3 Rated short-circuit breaking current kA 40
4 Rated short-time withstand current kA 40
5 Rated peak withstand current kA 100
6 Rated lightning impulse withstand voltage kV Across open breaks 750
To earth 750
7 Rated 1min power frequency
withstand voltage kV Across open breaks 325
To earth 325
8 mechanism spring
|
| |
Application |
| LW25-170III outdoor H.V.A.C porcelain SF6 circuit breaker with spring operating mechanism，is a new kind of circuit breaker with self-blast interrupter。This product has reliable performance and stable operation, is both single-pole operating and there-pole operating.It can adapt our requirements of various environmental conditions. |
